How to Design a Database in 3 Easy Steps: Conceptual, Logical and Physical Modeling
Imagine you’re a small business owner running a library with thousands of books that are organized by genre, author, and topic. Now, I want you to picture that same library without any system in place. Books are tossed around randomly, some even lying forgotten on the floor. Imagine trying to find a specific title in this chaos—it’s like searching for a needle in a haystack. The difference between these two scenarios lies in effective database design.
Database design is the art and science of structuring data to ensure efficient storage, retrieval and management. Whether you’re building a small application or a large-scale enterprise system, a well-designed database is crucial for maintaining data integrity, minimizing redundancy and optimizing performance.
In this article, I will be focusing on the three essential steps you need to know in database design: conceptual modeling, logical relational modeling, and physical modeling. These steps serve as the cornerstone of building robust and efficient databases, ensuring that your data is not just organized but also easily accessible and scalable.
Ad Break📺
If you are looking to start a career in data science and analytics, I am starting a newsletter where I will be sharing weekly articles, how-to guides and case studies surrounding the data domain. You can subscribe by clicking on the button below.
Why Is Database Design Important?
Before we start exploring the nitty-gritty, let us understand why database design matters.
Data Integrity: A well-designed database ensures that data remains accurate, consistent and reliable. Imagine an online banking system where your account balance mysteriously fluctuates. You might lose it😂. A database with proper design will prevent such nightmares.
Efficient Queries: When you search for a specific book in your library, you want quick results. Similarly, a properly designed database optimizes query performance, allowing applications to retrieve information swiftly.
Scalability: As your library grows, you will need more shelves and better organization. We can also see the same thing in a scalable database design that accommodates increasing data volumes without breaking a sweat.
Reduced Redundancy: Nobody wants duplicate copies of the same book. A good database design minimizes redundancy, saves storage space and ensures consistency.
The Three Steps of Database Design
Let’s briefly look at the three steps in designing a database.
Conceptual Modeling: Think of conceptual modeling as the blueprint for your database. Here, we focus on understanding the problem domain, identifying entities (like books), their attributes (such as title and author) and their relationships (who borrowed which book?). The outcome? A high-level, abstract representation of the system.
Logical Relational Modeling: Now, let’s translate our blueprint into language databases understand: relational models. This stage of database design entails creating tables and defining relationships between them. SQL (Structural Query Language) becomes our tool of choice. This results in a logical schema that captures the essence of our data.
Physical Modeling: In this phase, we consider implementing details like data types, indexing, storage, and performance optimization. It’s like arranging the actual books on the shelves, ensuring they are accessible and organized efficiently.
Objectives and Benefits
Here are the objectives you will achieve by following the 3-stage process:
Clarity: A clear understanding of your data requirements.
Flexibility: Adaptibility to changing business needs.
Maintainability: Easy updates and modifications.
Performance: Efficient data retrieval and storage.
So, whether you are building a library system, an e-commerce platform, or a social network, mastering database design is your ticket to organized, reliable data.
Let’s explore each stage of database design.
Conceptual Modeling: Unveiling the Blueprint
What is Conceptual Modeling?
Conceptual modeling is the creative and abstract phase where we lay the groundwork for our database. It is akin to sketching the initial draft of a grand architectural masterpiece. Imagine you’re an architect tasked with designing a house. Before you start exploring the specifics of the floor plans and material choices, you first need to understand the overarching structure and purpose of the house. This same approach is applied in conceptual modeling, which entails setting the stage for our database design journey by helping us grasp the essence of the problem domain and user requirements.
Let’s have a look at what conceptual modeling entails at its core.
Understanding the Problem Domain: Technicalities aside, we need to grasp the essence of the system we are building. What are the key concepts? Who are the main actors? What interactions occur? Whether it’s an e-commerce platform, a healthcare system, or a social network, we must immerse ourselves in the context.
Identifying Entities: Entities are the building blocks of our database. They represent real-world objects, such as customers, products, or orders. For our library system, entities could be books, authors, borrowers and genres. Each entity has attributes (like book title, author name and ISBN) that describe it.
Defining Relationships: Entities don’t exist in isolation; they interact. A borrower checks out a book, an author writes multiple books, and genres contain various titles. These connections form relationships. We classify relationships as one-to-one, one-to-many, or many-to-many. A good example is a book with multiple authors (many-to-many relationships).
How to Create a Conceptual Model?
Let’s look at how we can create a conceptual model.
Brainstorm and Sketch: Gather stakeholders (users, developers, domain experts) and brainstorm. Take down the main entities and their attributes. Imagine you’re designing a library system: “Books”, “Authors”, “Borrowers” and “Genres” are likely entities.
Entity-Relationship Diagrams (ERDs): ERDs are visual representations of our conceptual model. They use rectangles (entities), diamonds (relationships) and lines (connections). For our library, an ERD might show how books relate to authors and borrowers. ERDs help us communicate complex ideas succinctly.
Attributes and Cardinality: Define attributes for each entity. A book entity might have attributes like “Title”, “Publication Year” and “ISBN”. Specify cardinality (how many entities can be related). For example, a borrower can check out multiple books (a one-to-many relationship).

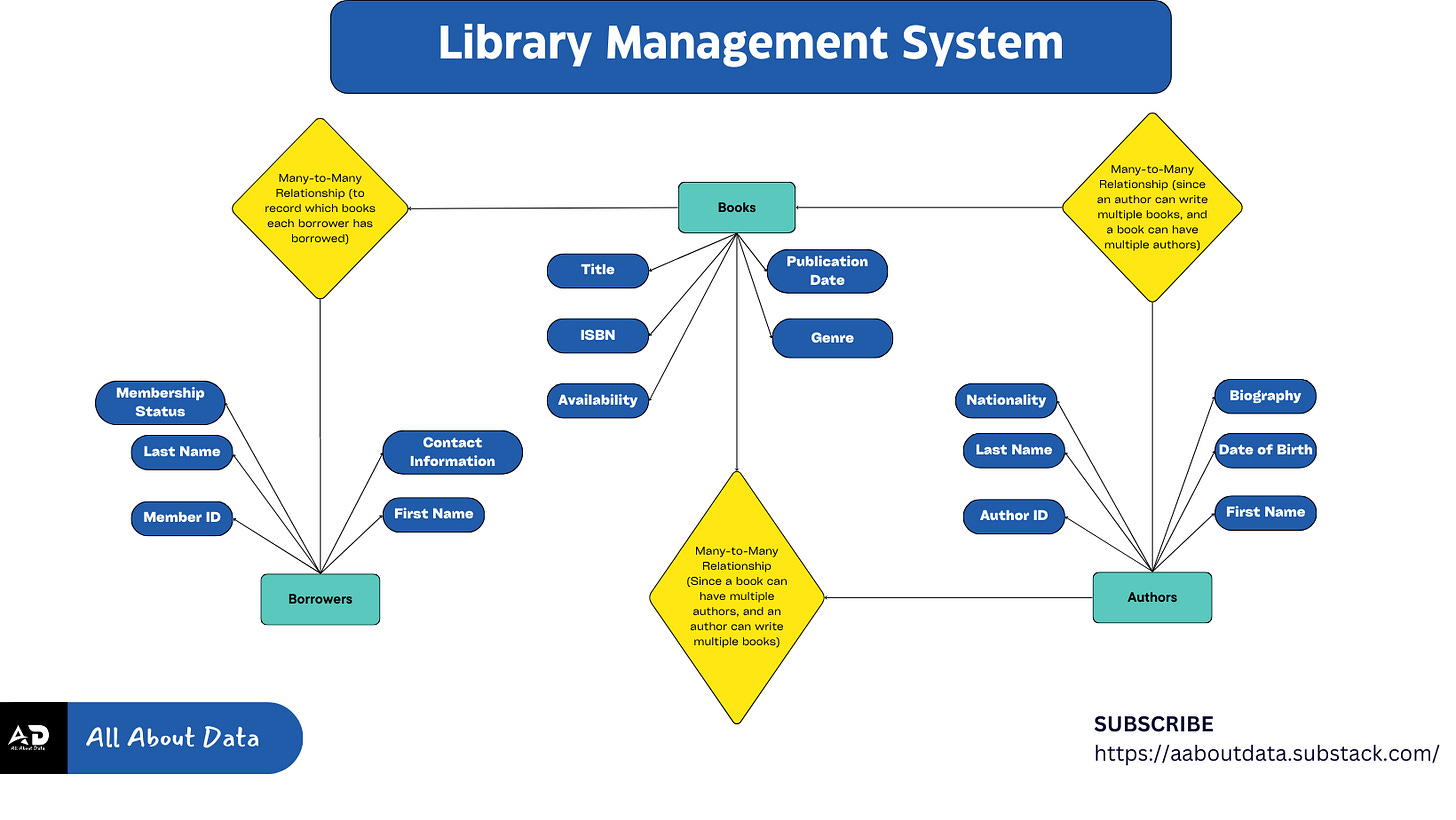

The image below is a good representation of an entity-relationship diagram of a library management system. In this ERD, we’ll define the tables for Books, Authors and Borrowers, along with their attributes and relationships.
Examples of Conceptual Models
Let’s briefly look at some examples of conceptual models.
Online Store Conceptual Model:
Entities: Customers, Products, Orders
Relationships: Customers place Orders for Products
Attributes: Product name, Customer addresses, Order date
2. Hospital Management Conceptual Model:
Entities: Patients, Doctors, Appointments
Relationships: Patients have Appointments with Doctors.
Attributes: Patient name, Doctor specialization, Appointment time
With conceptual modeling, we are already laying the groundwork for successful database design. Remember, conceptual modeling is mostly about capturing the essence.
Logical Relational Modeling: Crafting the Data Framework
What is Logical Relational Modeling?
So far, we have seen how important conceptual modeling is in database design, specifically in how it gave us the blueprint. Now, it’s time to build the framework. Logical relational modeling bridges the gap between abstract concepts and concrete database structures. You can think of it as basically transferring your artistic sketch into architectural plans.
This is what we will be focusing on in this phase.
Relational Data Model: Our foundation is the relational model, championed by E.F. Codd. It revolves around tables (relations), rows (tuples) and columns (attributes). Each table represents an entity and relationships are expressed through keys.
Transforming the Conceptual Model: In this phase, we take the entities, attributes, and relationships from our conceptual model and map them to relational tables. For instance, our “Books” entity becomes a “Books” table with columns like “Title”, “Author” and “ISBN”.
Ensuring Data Integrity: We enforce rules to maintain data quality. This involves normalization, which minimizes redundancy and anomalies. We also identify functional dependencies (how attributes depend on each other).
How to Create a Logical Model?
In 4 simple steps, let’s look at how to create a logical model.
Entity-to-Table Mapping:
Each entity becomes a table.
Attributes become columns.
Relationships translate to foreign keys (connecting tables).
2. Keys:
Primary Key: A unique identifier for each row in a table. For our “Books” table, ISBN could be the primary key.
Foreign Key: Links tables together. If we have a “Borrowers” table, the borrower’s ID becomes a foreign key in the “Books” table.
3. Normalization:
First Normal Form (1NF): Eliminates repeating groups (like multiple authors for a book).
Second Normal Form (2NF): Remove partial dependencies (attributes dependent on only part of the primary key).
Third Normal Form (3NF): Address transitive dependencies (attributes dependent on other non-key attributes).
Identify which attributes determine others.
Example: In our library system, “Author” determines “Author’s Nationality”.
Examples of Logical Models
Here are examples of logical models.
Library Management System:
Tables: “Books”, “Authors”, “Borrowers”
Relationships: Borrowers borrow Books
Keys: ISBN (Books), Author ID (Authors), Borrower ID (Borrowers).
2. Online Store Inventory:
Tables: “Products”, “Categories”, “Orders”
Relationships: Orders contain Products
Keys: Product ID (Products), Category ID (Categories), Order ID (Orders)
We have come a long way from introduction to database design, conceptual modeling, and now logical modeling. Remember, logical modeling is all about precision and structure. It’s where we lay the bricks, ensuring our database stands strong.
To the final stage of the database design, which is where we construct.
Physical Modeling: Constructing the Database Infrastructure
What Is Physical Modeling?
We have drawn our blueprint (conceptual modeling) and built the framework (logical relational modeling). Now, it’s time to build. Physical modeling transforms our logical model into a tangible database structure that resides on disk. Think of it as constructing the actual library shelves and organizing the books.
Here is what we will be focusing on in this final phase.
Creating the Physical Schema: We translate our logical tables into actual database tables. Each table corresponds to a file on disk. The schema defines the structure, data types and constraints.
Optimizing Performance: We fine-tune our database for efficiency. This involves index partitioning and denormalization. Imagine arranging the books on the shelves for easy access.
Ensuring Security: We set access controls, authentication mechanisms, and encryption. Our library needs locks and security cameras to protect its treasures.
How to Create a Physical Schema?
Data Types: Choose appropriate data types for columns. For example:
VARCHAR for books titles
INT for ISBNs
DATE for publication dates
2. Constraints: There are many constraints in defining your database. Here are some examples you might want to get familiar with:
Primary Key Constraint: Ensure each table has a primary key. It uniquely identifies rows.
Foreign Key Constraint: Link related tables. For instance, the “Borrowers” table’s borrower ID is a foreign key in the “Books” table.
Check Constraints: Define rules (e.g., publication year must be between 1800 and the current year).
Others are default constraints, not-null constraints and unique constraints.
3. Indexes:
Indexes speed up data retrieval. Create indexes on columns frequently used in queries (e.g., book titles, author names).
Types of indexes: B-tree, hash, bitmap, etc.
4. Views:
Views are virtual tables based on queries. They simplify complex queries and provide a customized perspective on the data.
A good example is a view showing borrowed books and their due dates.
Examples of Physical Schemas
Library Database:
Tables: “Books”, “Authors”, “Borrowers”
Columns: Book title, Author name, ISBN, Borrower ID
Constraints: Primary keys, foreign keys
Indexes: On book titles, author names
Views: Borrowed books view
2. E-Commerce Inventory:
Tables: “Products”, “Categories”, “Orders”
Columns: Product name, Category ID, Order details
Constraints: Primary keys, foreign keys
Indexes: On product names, order IDs
Views: Top-selling products view
Conclusion
So far, we have explored the essential steps involved in designing a database: conceptual, logical and physical modeling. By following these steps, you can ensure that your data remains organized, accessible and scalable. Let’s recap the key takeaways:
Conceptual Modeling:
At this stage, we focus on understanding the high-level requirements and business rules.
This phase involves understanding the problem domain, identifying entities and their attributes, and defining relationships using entity-relationship diagrams (ERDs).
The goal is to capture the essence of the system without worrying about implementation details.
2. Logical Modeling:
Here, we refine the conceptual model into a more detailed and structured representation.
We create a Logical Data Model (LDM) using tools like UML diagrams or relational schemas.
Normalization techniques help eliminate redundancy and ensure data consistency.
3. Physical Modeling:
In this phase, we translate the logical model into a physical database design.
We choose a database management system (DBMS) and define tables, indexes and constraints.
Performance considerations, storage requirements and access patterns guide our decisions.
Best Practices for Database Design:
Avoid redundancy: Normalize your data to minimize duplication.
Ensure consistency: Enforce integrity constraints and use foreign keys.
Document the design process: Maintain clear documentation for future reference.
I hope you find this article useful😊. Remember that good database design is crucial for efficient data management, scalability, and reliability.
